Fitment Box: 6M
- Glass size :- Length: 238 mm, Width: 86 mm
- Type :-
- 12 Switch + Master
- 1 Fan + 9 Switch + Master
- Load Type : Leading edge phase cut dimmer with Open & close Curtain Motor 100 to 150W & Socket 6Amp or 16 Amp
- Output Contact Rating : 230Volt AC 32Amp
- Load Type : Air conditioning,Led lamp ,Incandescent Load upto 16Amp & Fan Load upto 85 watt
- Switch type : Smart Capacitive Touch
- Input Supply : 90V to 250V AC
- Front Fascia : 3mm rounded edge toughened glass
- Proximity Sensor : Proxy wakeup for Switches
- Wake Up range : Upto 1 foot
- WiFi Enabled : Mobile App based 2.4 Ghz
- Remote : RF
High-Capacity Smart Control

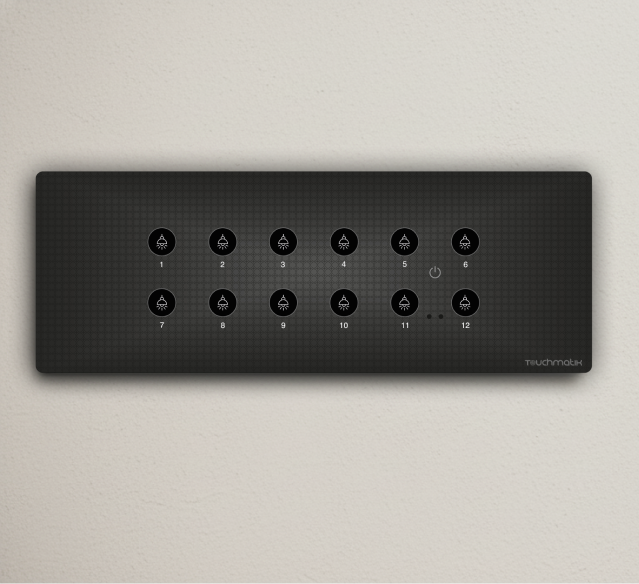

The Topaz 6M panel offers powerful multi-load switching for large spaces, combining proximity wake-up, Wi-Fi app control, RF support, and premium glass design for seamless, elegant, and efficient home automation across multiple points.
Multi-Zone Switching
Controls up to twelve loads or a fan-light combination, ideal for living rooms, offices, and large smart home setups.
Proximity Wake Sensor
Icons illuminate automatically when approached, providing hands-free visibility & effortless operation within a one-foot activation range.
Wi-Fi App Integration
Manage all switch points remotely through the mobile app, enabling scheduling, automation routines & streamlined smart home control.
RF Remote Support
Ensures smooth switching using RF remotes without line-of-sight, enhancing daily convenience in modern home automation.
Connectivity & Smart Integration
Touch Activation
Internal chip converts touch signals into actions instantly.
App Connectivity
Controls switches remotely through WiFi-enabled mobile app.
Voice Integration
Works seamlessly with Alexa and Google Home commands.
IoT Compatibility
MQTT protocol enables automation with third-party platforms.
Custom Functional Icons
Glass Colour Options
Printed Glass Designs
Icon Backlight Adjustment
Essential Installation & Ordering Guidelines
Please follow these instructions when preparing switchboards and gang boxes. Ensure correct wiring, depth, model verification, and emergency provisions. Install only after final wall finishing. Orders are processed as finalized, and changes cannot be made afterward.
- Delivery after 100% payment receipt.
- Immediate delivery if material is in stock.
- Maximum delivery time: 6-7 working weeks.
Warranty Terms and
Conditions
Regulated Power Required
Warranty applies only with stable, protected electrical supply.
Free Replacement Coverage
One-year replacement offered for genuine manufacturing defects.
Improper Use Damage
Warranty void if touch panel is damaged by objects.
Unregulated Power Issues
Faults from fluctuating power will be fully chargeable.
