Fitment Box: 12M
- Available in Vertical & Horizontal view
- Glass size :- Length: 238 mm, Width: 171 mm
- Type :-
- 12 Switch + 3 Socket + Master
- 1 Fan + 9 Switch + 3 Socket + Master
- Output Contact Rating – 230Volt AC 16Amp
- Load Type – Air conditioning,Led lamp ,Incandescent Load upto 16Amp ,Socket 6 Amp or 16 Amp & Fan Load upto 85 watt
- Switch type – Smart Capacitive Touch
- Input Supply – 90V to 250V AC
- Front Fascia – 3mm rounded edge toughened glass
- Proximity Sensor – Proxy wakeup for Switches
- Wake Up range – Upto 1 foot
- WiFi Enabled – Mobile App based 2.4 Ghz
- Remote – RF
Smart Control With Sockets

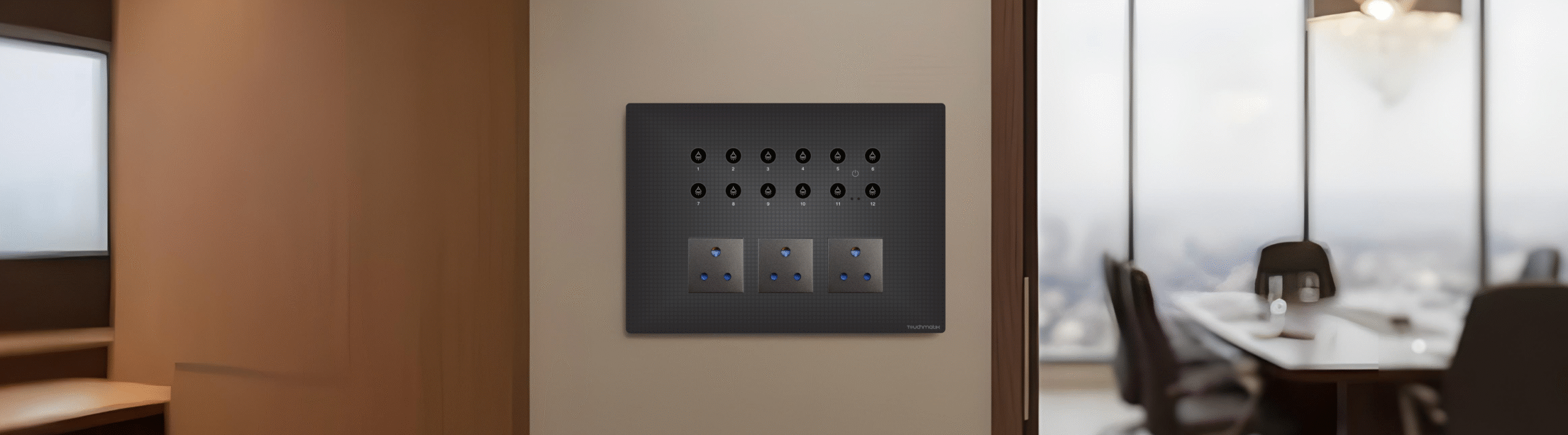

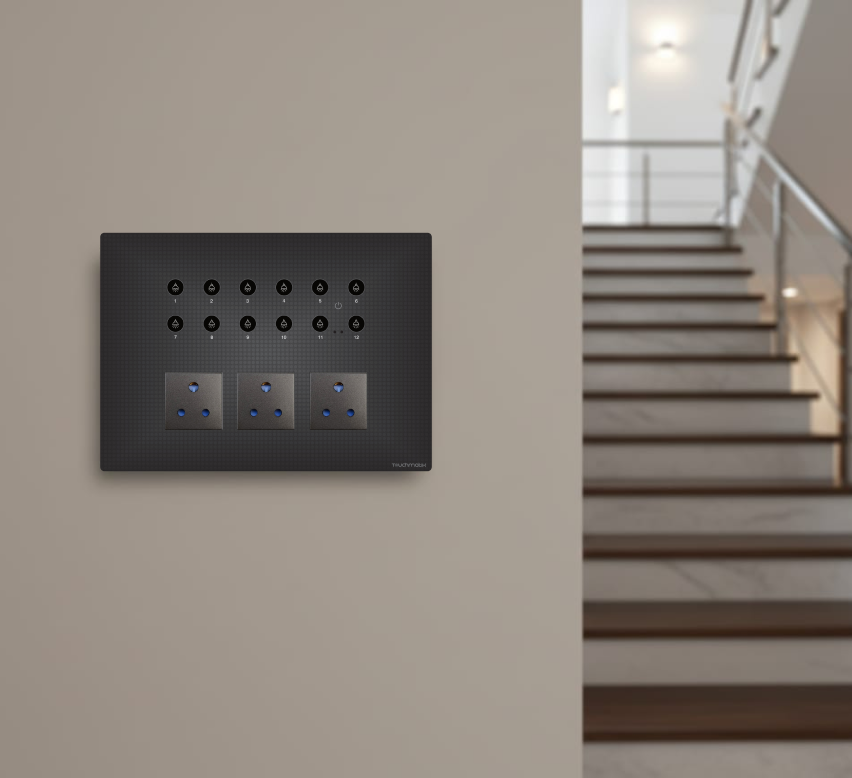

The Ruby 3-Socket panel combines multi-load switching, fan control, and three integrated sockets with proximity wake-up, Wi-Fi app control, and RF support—offering a complete, elegant, and future-ready home automation solution.
Triple Smart Sockets
Three built-in 6A/16A sockets provide convenient access while integrating seamlessly with modern home automation systems.
Nine-Zone Switching
Controls eight loads plus a fan, delivering versatile performance for large rooms and multi-device smart touch switch setups.
Proximity Wake Sensor
Icons illuminate instantly when approached, enabling hands-free visibility and effortless control within a one-foot activation range.
Wi-Fi & RF Control
Manage switching and sockets through the mobile app or RF remote, allowing schedules, automation scenes, and easy daily control.
Connectivity & Smart Integration
Touch Activation
Internal chip converts touch signals into actions instantly.
App Connectivity
Controls switches remotely through WiFi-enabled mobile app.
Voice Integration
Works seamlessly with Alexa and Google Home commands.
IoT Compatibility
MQTT protocol enables automation with third-party platforms.
Custom Switch Icons
Glass Colours and Finish
Printed Glass Designs
Icon Brightness Settings
Essential Installation & Ordering Guidelines
Please follow these instructions when preparing switchboards and gang boxes. Ensure correct wiring, depth, model verification, and emergency provisions. Install only after final wall finishing. Orders are processed as finalized, and changes cannot be made afterward.
- Delivery after 100% payment receipt.
- Immediate delivery if material is in stock.
- Maximum delivery time: 6-7 working weeks.
Warranty Terms and
Conditions
Regulated Power Required
Warranty applies only with stable, protected electrical supply.
Free Replacement Coverage
One-year replacement offered for genuine manufacturing defects.
Improper Use Damage
Warranty void if touch panel is damaged by objects.
Unregulated Power Issues
Faults from fluctuating power will be fully chargeable.
